In the modern chiropractic office, objective analysis is more important than ever. Chiropractors are increasingly relying on advanced technology to document patient progress, justify treatment plans, and improve clinical outcomes. The shift from subjective palpation to technology-assisted analysis allows doctors to identify joint fixation and measure spinal stiffness with greater precision. When using a sophisticated chiropractic adjusting instrument like the PulStar, you are gathering detailed data on vertebral stiffness and spinal compliance. However, raw data can sometimes be misleading or difficult to interpret visually. This is where the normalization process becomes a critical component of your analysis. Understanding how the PulStar system normalizes data helps you interpret your results with greater accuracy and provides deeper insights into your patient’s spinal function.
The Clinical Challenge of Raw Data
When you perform a spinal analysis, the PulStar delivers a small impulse into each vertebral segment. The sensor then measures the force returning from the tissue relative to the force it put in. This differential, the response minus the input, is what the system records as resistance. These measurements are stored as raw values. For example, a reading might indicate a resistance of 105, which corresponds to 10.5 pounds of force. While these raw numbers provide exact physical measurements, they can create challenges when visualizing the data on a graph.
Consider the variety of physical substrates the instrument might encounter. A very soft substrate compresses easily and may produce low values such as 20, 25, or 27. A medium substrate produces middle-range values such as 115 or 117. A very hard substrate resists movement strongly and may produce high values such as 149, 155, or 171. The instrument is essentially detecting differences in resistance or compliance.
The Science: Understanding Spinal Stiffness and Compliance
To address these challenges, we must look at the biomechanics of the spine. Healthy spinal segments exhibit a specific range of motion and a characteristic response to force. When a joint is fixated or restricted, it often presents with altered biomechanical properties, specifically changes in stiffness and compliance.
Stiffness refers to the resistance of a joint to deformation or movement, while compliance is the ease with which a joint can be displaced. In a healthy spine, there is a balance between stiffness and compliance across segments. However, in the presence of a subluxation or dysfunction, this balance is disrupted. Research suggests that mechanoreceptors in the spinal tissues respond differently to varying degrees of stiffness, influencing pain perception and motor control.
By measuring the force required to move a vertebral segment and the resulting displacement, doctors can calculate differential compliance. This metric provides a precise indicator of where a joint is dysfunctional. Studies on Multiple Impulse Therapy (MIT) have shown that these specific biomechanical parameters can be measured and that targeted impulses can positively alter them. The science behind this technology is rooted in the principle that applying controlled, multiple impulses can stimulate mechanoreceptors and reduce the stiffness of a fixated joint, restoring normal biomechanical function.
If you view this data on a graph with a fixed scale, the high values can “clip” or hit the top of the chart. For instance, if the graph scale is capped at 150, a reading of 155 and a reading of 171 might both appear at the very top of the bar. This clipping effect creates several problems:
- It becomes difficult to see the differences between the highest readings.
- Visual detail is lost because the bars are compressed at the top.
- It is harder to compare the relative severity of stiffness between different segments.
- The graph may not accurately reflect the clinical picture of dysfunction.
In these cases, the raw graph tells you that the values are high, but it does not clearly show which areas are the most problematic relative to the rest of the spine.
The Science of Normalization
The PulStar system addresses these visualization challenges through a process called normalization. Instead of focusing solely on the absolute magnitude of the measurements, the normalized display focuses on how much each area stands out relative to the overall pattern of the scan.
The algorithm works by comparing each vertebral segment to the mean of all the vertebrae in the analyzed area. As you progress through the analysis, the height of the bars changes because the system is constantly recalculating these relative values. This approach shifts the baseline so that every segment is evaluated against the collective data from the entire scan

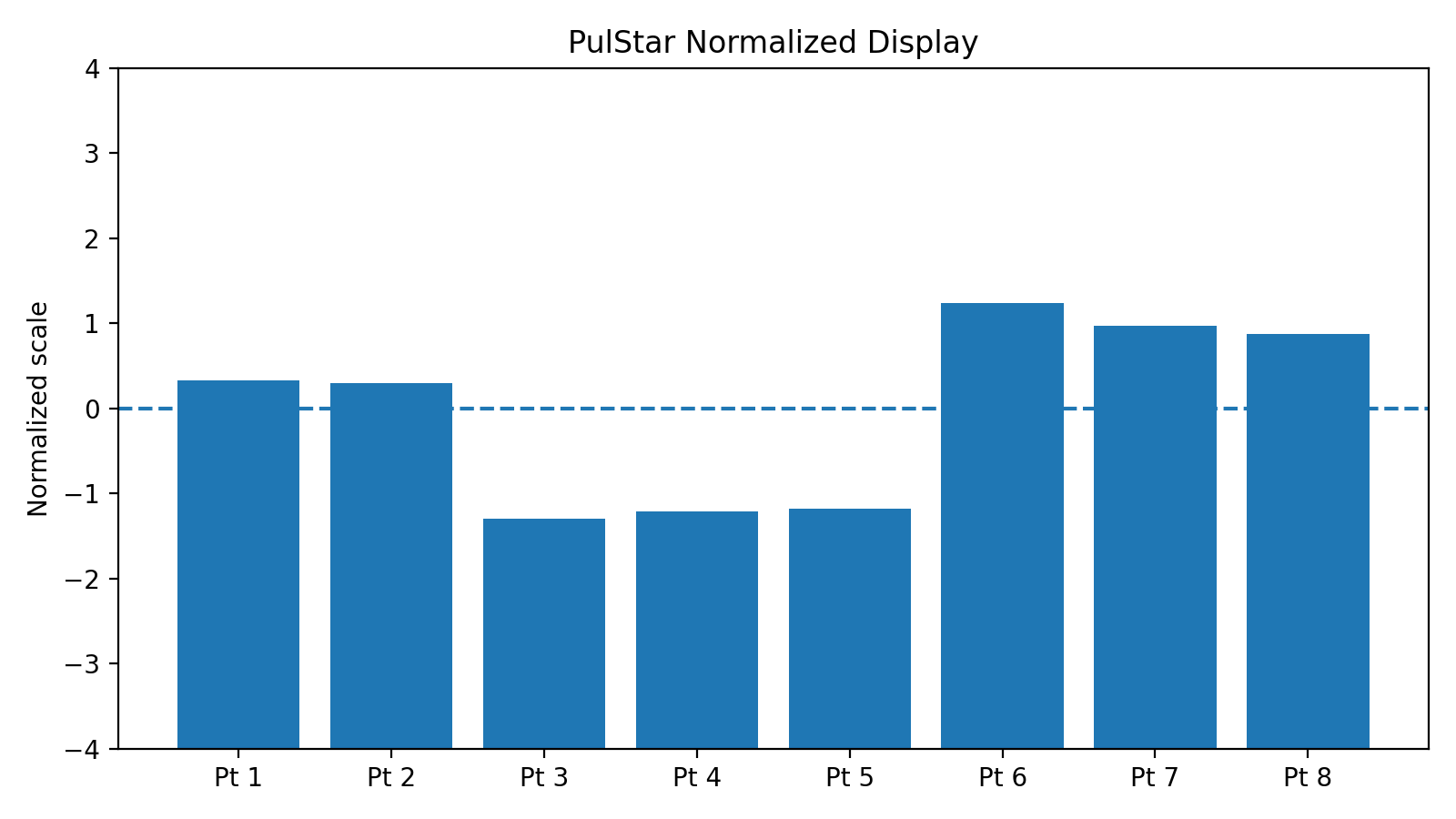

In the normalized display, all bars begin at the same lower baseline and rise upward according to their normalized value. The important part is where the bar ends, not where it starts. This method allows the system to highlight outliers or areas of greater resistance without being distorted by extreme values. By normalizing the data, the system ensures that the visual representation accurately reflects the relative stiffness of each segment.
How PulStar Uses Normalized Data for Analysis
The PulStar system uses normalized data for the primary bar display because it solves several important problems that occur with raw graphs. By normalizing the data, the system ensures that:
- Large values are prevented from being clipped at the top of the graph.
- Visual differences between high readings are preserved.
- The graph remains visually balanced, making it easier to read.
- Abnormal regions stand out more clearly against the background of normal function.
- Pattern recognition is improved, allowing the clinician to see the overall distribution of stiffness.
This display is particularly useful in the clinical setting because it is used to establish trend data. The bar graph is normalized to identify areas of greater resistance when compared to the overall results. This allows the chiropractor to focus on the relative dysfunction rather than just the absolute numbers.
Pattern recognition is a key skill in chiropractic care. Normalization helps you distinguish between a general increase in stiffness due to muscle guarding and a specific segmental fixation. By highlighting the outliers, the normalized display makes it easier to identify the specific segments that require adjustment.
